How LoRaWAN® Devices Advance BMS Solutions in Existing Buildings

Building Management Systems (BMS) have been the central control layer of facility operations for more than 30 years. Originally developed for HVAC control, they have gradually evolved to monitor other critical building parameters. But while the systems have expanded in scope, they haven’t always kept pace with the new demands of modern buildings.

Today, facility managers face growing pressure to comply with energy efficiency regulations, reduce operational costs, optimize space usage, and create healthier, more comfortable indoor environments. Achieving these goals requires more than just a few core sensors—it calls for real-time data from every corner of a building.

And that’s where LoRaWAN® comes in.

Unlike traditional approaches, LoRaWAN®-enabled IoT sensors offer a simpler, more cost-effective way to monitor buildings at scale. Their long-range, low-power capabilities make them ideal for retrofitting existing spaces without the high cost and disruption of adding new wiring.

Let’s compare: Zigbee, Z-Wave, Wi-Fi, and BLE have an RF propagation range of roughly 80–100 dB, which typically translates to 20–30 meters or coverage across one to two floors of a building. These technologies were designed for high data throughput over short distances or mesh networks—which can be unreliable in noisy environments and complex to set up.

LoRaWAN®, on the other hand, supports a link budget of up to 150 dB, delivering coverage across four to six concrete floors in most buildings. Its star topology is optimized for transmitting small data packets over long distances using sub-GHz frequencies (860 MHz and 900 MHz), which experience far less interference than the crowded 2.4 GHz and 5 GHz bands used by other technologies.

In practical terms? This means one LoRaWAN® gateway can support thousands of battery-powered sensors spread across an entire facility—many of which can operate for 5 to 10 years on a single AA or coin cell battery.

And it doesn’t stop there.

What makes LoRaWAN® particularly compelling is its native compatibility with existing BMS infrastructure. Facility managers don’t have to overhaul their systems—instead, LoRaWAN® sensors can be integrated just like wired devices. For integrators and operators, it feels like business as usual—but at a fraction of the cost.

We’re talking 1/10 to 1/100 the cost of adding wired sensors. And yet, with LoRaWAN®, you gain the ability to monitor and control your building in real-time through the same familiar BMS interface.

With this approach, building operators can:

1. Reduce energy consumption through smarter, data-driven control
2. Lower operating and maintenance costs by minimizing manual inspections
3. Maximize space utilization by understanding how areas are actually used
4. Improve comfort and wellness for occupants with better environmental monitoring
5. Meet government regulations tied to net-zero and energy-efficient initiatives

All without disrupting the existing facility management ecosystem.

That’s the power of LoRaWAN®. And it’s why so many facility managers are now enhancing their existing BMS by adding LoRaWAN® devices—cutting down on cabling, labor, and time.

Whether it’s a 5-story commercial building or a 50-story high-rise, we’ve helped clients deploy LoRaWAN® in as little as one day, or within one to two weeks for larger facilities—with only a small team on the ground.

So how did we get here—and why is LoRaWAN® emerging as the go-to solution for modernizing building systems? Let’s explore the evolution of BMS, the limitations of traditional infrastructure, and the clear advantages that LoRaWAN® brings to the table.

A Brief History of BMS

While smart buildings might feel like a recent innovation, the roots of Building Management Systems (BMS) go back nearly two centuries.

The journey began in the early 1800s, when basic automation tools like mechanical thermostats were introduced to control lighting and temperature in buildings. These early inventions laid the foundation for more complex automation systems to come.

A major milestone came in 1883, when Warren Johnson developed the first electric thermostat. This simple but powerful device became the bedrock of what would eventually evolve into today’s Building Automation Systems (BAS) and Building Management Systems (BMS).

Fast forward to the 1920s, and the first rudimentary BMS was deployed in a New York office building. It used analog electric controllers to manage temperature and humidity—an early glimpse at centralized environmental control in commercial spaces.

By the 1950s, with the rise of digital electronics, networking, and Programmable Logic Controllers (PLCs), BMS technology began to scale. Buildings could now manage a wider array of systems using increasingly sophisticated infrastructure.

But it was the introduction of microprocessor-based controls in the 1970s that truly transformed BMS into what we recognize today: a flexible, programmable control system that could centralize and automate key building functions.

Then came 1996, and with it a game-changer: BACnet. This open communication protocol allowed different systems—HVAC, lighting, fire safety, and more—to “speak the same language,” dramatically expanding the interoperability and scalability of BMS solutions.

From mechanical thermostats to digital intelligence, BMS has come a long way. But as we’ll see next, while the foundation is strong, modern buildings require much more than what traditional systems were designed to handle.

Let’s dive into why BMS systems started with HVAC—and what that means for their capabilities today.

Why BMS Began with HVAC

Building Management Systems (BMS) trace their roots back to HVAC automation, and that’s no coincidence. In the 1880s, early thermostats were developed to manage temperature and humidity—long before the term “BMS” existed.

By 1902, Willis Carrier’s invention of air conditioning brought centralized climate control to large buildings, laying the foundation for automation. HVAC systems—filled with ducts, boilers, and chillers—were complex and spread across entire facilities. As digital electronics and PLCs emerged in the 1960s and ’70s, automating HVAC became a natural first step.

Beyond the technical need, there were economic drivers too. HVAC consumes the most energy in commercial buildings. Automating it offered immediate energy savings and regulatory compliance, making it an easy business case.

So, BMS began with HVAC because it mattered most—technically, financially, and operationally.

Next, we’ll look at how BMS evolved to manage much more than just air.

BMS Expansion to Other Building Control Functions

Once HVAC systems were digitalized and centralized, BMS platforms rapidly grew to integrate:

• Lighting: scheduling and dimming based on occupancy
• Fire safety & life safety: alarms, smoke dampers, emergency response
• Security & access: integrating CCTV, badge readers, intrusion prevention
• Power distribution: metering, load-shedding, and electrical supply control
• Shading, elevators, water systems: to optimize comfort and energy use

This expansion led BMS to evolve into multi-system hubs, enhancing energy efficiency, occupant comfort, and safety.

Dominant BMS Protocols, Software & Frameworks Today

BACnet (ANSI/ASHRAE 135) is the de facto protocol for building automation since 1995. It supportsHVAC, lighting, access, fire safety, and more. And its market share was 40% in 2024, with Modbus coming next at ~25%.

LonWorks, KNX, and oBIX are niche players enabling device data exchange via BACnet or REST.

Tridium Niagara Framework / Niagara 4 is a universal engine enabling device-to-enterprise integration via BACnet, Modbus, LonTalk, oBIX, REST APIs. It is embedded in products from Trend, Honeywell WEBs, Distech, Cylon, and others. It is regarded for scalability, interoperability, and IoT friendliness, but requires specialized training.

BMS began with HVAC control in mid 20^th century due to its centralized, high-cost, and high-impact nature.Once in place, extending the platform to other building systems was a logical and cost-effective next step forgradual integration of lighting, security, fire, energy, shading, water, and access control. Today’s BMS relies on open protocols (BACnet, Modbus) and frameworks like Niagara to integrate diverse systems and support modern, IoT-enabled building management.

Core BMS Functions Beyond HVAC

The modern BMS control and monitor a variety of interrelated systems beyond HVAC, such as:

1. Lighting systems – scheduling, dimming, occupancy/light response
2. Electrical distribution & power monitoring – managing circuits, loads
3. Shading and glazing – automated blinds or smart glass control
4. Access control & security – door systems, CCTV, motion sensors
5. Fire safety – alarms, dampers, smoke evacuation, integration with HVAC
6. Elevators/escalators – monitoring and emergency overrides
7. Energy management – real-time consumption, demand responses
8. Emergency management/disaster systems – g., earthquake or flood response
9. Water systems – pumps, HVAC water loops, leak detection
10. Alarms & alerts logging – system failures, maintenance notifications

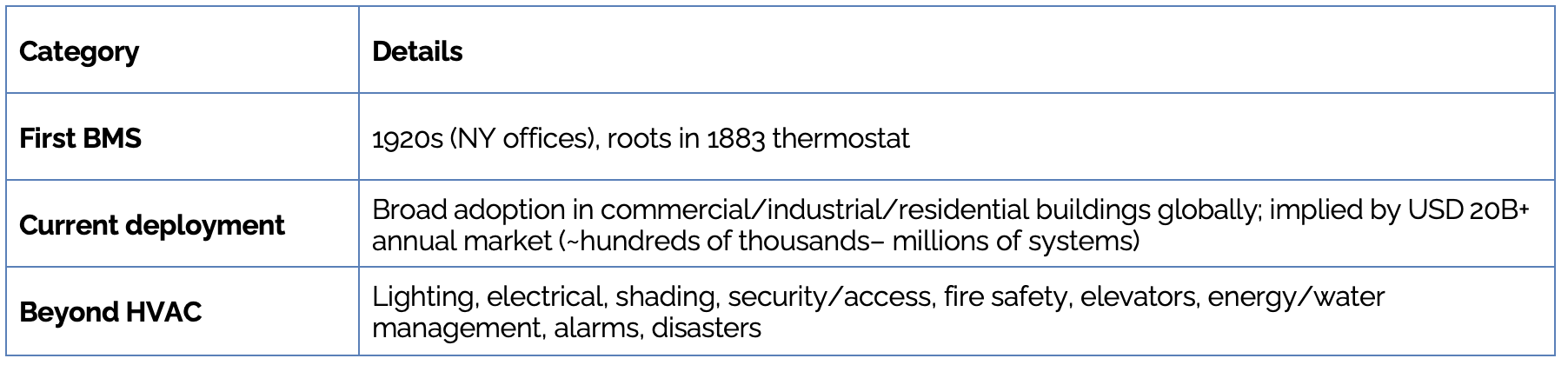

How Many BMS Are Deployed and What Is the Market Size?

While it’s rare to find a precise count of Building Management Systems (BMS) deployed globally, we can get a clear sense of scale by looking at market data:

• The global BMS market was valued at around $19.8 billion in 2024, and is expected to grow at approximately a 3% CAGR between 2025 and 2034 (source: Global Market Insights).
• Another forecast projects growth from $20.25 billion in 2024 to $82 billion by 2034, at a 0% CAGR (source: Precedence Research).
• A separate estimate places the market at $14.4 billion in 2023, expanding to $33.8 billion by 2030—a 0% CAGR .

These projections highlight a massive and growing industry. Given that most commercial, institutional, and industrial high-rises built since the 2000s include some form of BMS, we’re easily looking at hundreds of thousands to millionsof active systems in operation worldwide.

This expansion is fueled by rising energy prices, stricter sustainability mandates, and the push for smarter, data-driven building operations. But even with this growth, many BMS installations are still wired systems—leaving a clear opportunity for wireless innovations like LoRaWAN®.

Next up: we’ll explore how traditional BMS architecture is wired to the core—and why that presents both limitations and opportunities for modernization.

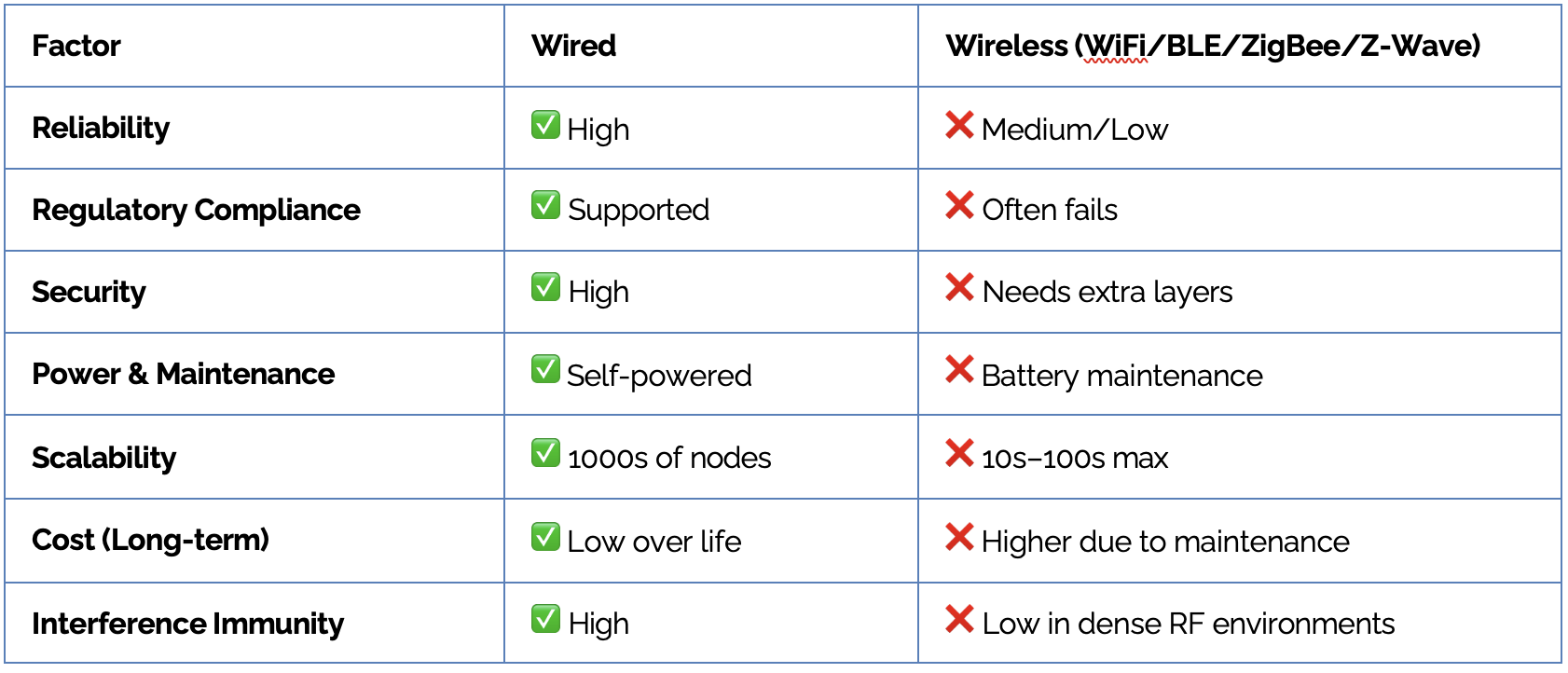

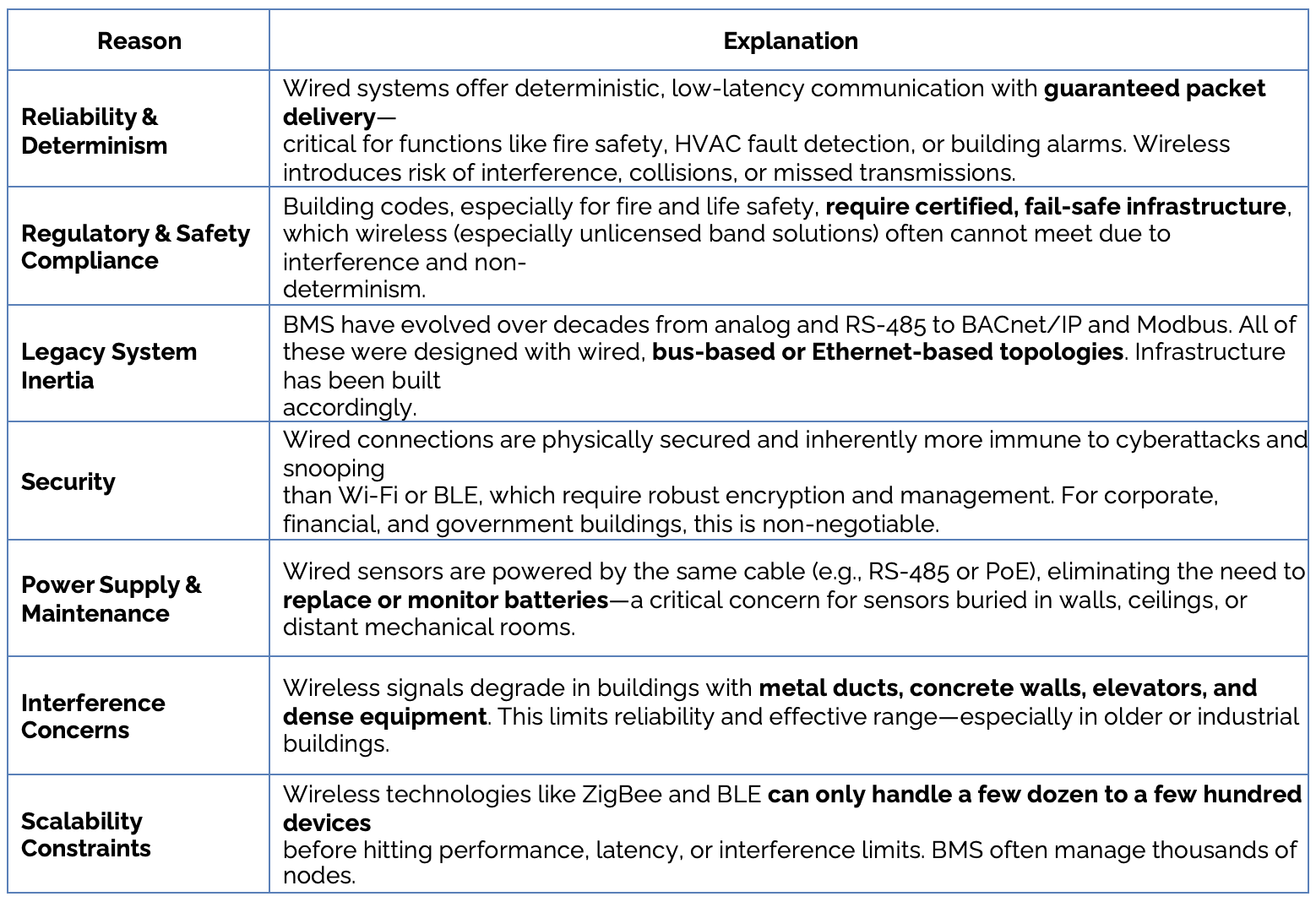

Why BMS Are Almost Entirely Wired

Most Building Management Systems (BMS) in commercial and industrial buildings today are wired for very specific technical, operational, and economic reasons. Wireless technologies like Wi-Fi, BLE, Zigbee, and Z-Wave are rarely used in BMS deployments—not because they’re unavailable, but because they arefundamentally unsuited for critical infrastructure in large, complex buildings.

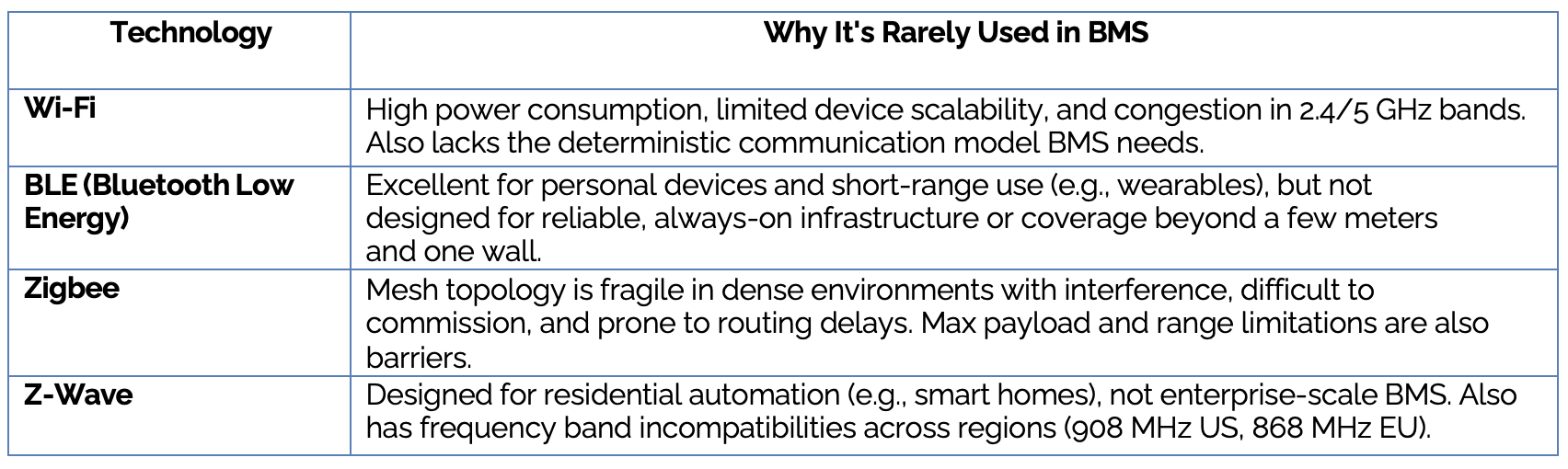

Why Wi-Fi, BLE, Zigbee, and Z-Wave Are Rarely Used

Wireless technologies like Wi-Fi, Bluetooth Low Energy (BLE), Zigbee, and Z-Wave are common in consumer electronics and smart home setups—but they rarely find a place in enterprise-grade Building Management Systems. And it’s not for lack of availability. These technologies simply aren’t built for the scale, reliability, and longevity that large commercial and industrial buildings require. Here is why.



Why Wireless Sensors Often Fail in BMS

Let’s walk through a real-world scenario.

Imagine you’re tasked with retrofitting a 30-story hospital with wireless sensors to monitor temperature and humidity in every patient room, hallway, and utility area. On paper, it might seem like a great way to cut wiring costs. But here’s what really happens:

1. Wi-Fi would require hundreds of access points (APs) across floors and wings—plus extensive IT infrastructure to manage connectivity, updates, and security.
2. BLE and Zigbee might save power compared to Wi-Fi, but they would still need battery replacements every 1–2 years, not to mention a dense network of mesh repeaters just to ensure consistent communication between floors.
3. Concrete walls, elevators, and medical equipment create massive signal interference—meaning many sensors won’t connect reliably, if at all.
4. Every time a device is moved, fails, or loses power, IT or facility staff must recommission the node manually—creating hours of unexpected maintenance.
5. In the end, the time, effort, and risk of system failures quickly outweigh the initial savings from avoiding cables.

This isn’t just a hypothetical. It’s a reality for many facility teams that have experimented with short-range wireless sensors. Without purpose-built infrastructure and long-range reliability, these systems often introduce more problems than they solve.

Next, we’ll break down exactly how LoRaWAN® overcomes these pitfalls—and why it’s a smarter fit for demanding environments like hospitals, office towers, and industrial facilities.

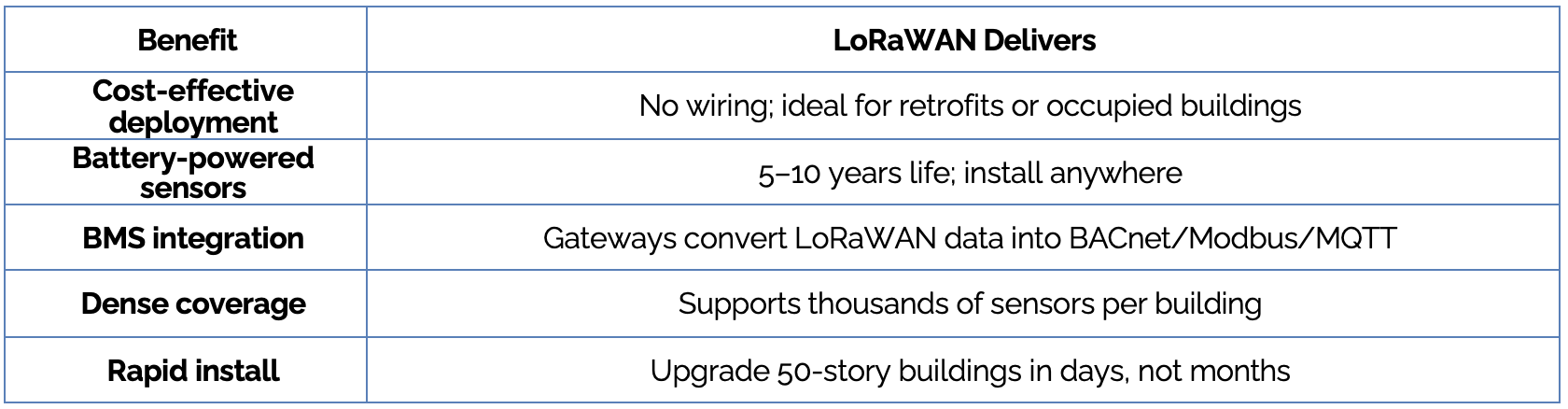

Why LoRaWAN® is Ideal for Enhancing BMS

LoRaWAN overcomes many wireless limitations:

1. 150+ dB link budget → penetrates concrete and spans 4–6 This is due to lower interference in sub-GHzspectrum compared to 2.4 and 5 GHz spectrum and interference-resistant LoRa Physical Layer.
2. Ultra-low power → 5–10 year battery
3. Star topology → no mesh
4. BMS-native integration → can act as a “wired sensor” from BMS’s perspective via gateways and converters(Modbus, BACnet, MQTT).

Do most deployed BMS solutions today have enough wired sensors and devices connected to collect all requireddata to make address 5 key areas mentioned before for facility managers?

No — most deployed BMS solutions today do not have enough wired sensors and devices to fully address thefive key areas for facility managers:

1. Reduce energy consumption
2. Reduce operating and maintenance costs
3. Increase building utilization
4. Improve wellness and livability
5. Meet government directives (net-zero, energy efficiency,)

And here is why:

Legacy BMS Were Built Around HVAC, Not Full-Spectrum Monitoring

• Traditional BMS primarily control HVAC, lighting, and perhaps fire safety and
• They lack granularity—one sensor might represent an entire floor or
• Modern use cases demand room-level, desk-level, and zone-level insights (e.g., CO₂, occupancy,humidity), which old wired sensors don’t provide.

Wired Sensor Deployment Is Limited by Cost and Complexity

• Running wires is expensive and disruptive — especially in occupied or retrofit buildings.
• As a result, BMS integrators only wire what is deemed “essential” (HVAC dampers, temperature points, powermeters).
• Systems often have minimal or no sensors for:
  1. Occupancy and desk usage
  2. Indoor air quality (CO₂, VOCs, 5)
  3. Predictive maintenance (vibration, motor temperature)
  4. Water usage and leak detection
  5. Noise levels and human comfort

Data Gaps Lead to Blind Spots

Without dense sensor coverage, facility managers cannot:

1. Benchmark underused areas for energy downsizing
2. Optimize cleaning, lighting, or ventilation by real occupancy
3. Detect leaks or equipment inefficiencies early
4. Validate air quality claims (increasingly regulated post-COVID)
5. Comply with emerging ESG anddecarbonization mandates

Most Systems Are Closed or Hard to Upgrade

1. Many BMS installations are proprietary or semi-closed (e.g., older Johnson Controls, Siemens, or Honeywellsystems).
2. Adding new devices often requires licensed contractors, software updates, and compatibility
3. This limits their flexibility and scalability to capture new data

Most Common BMS Deployed Today

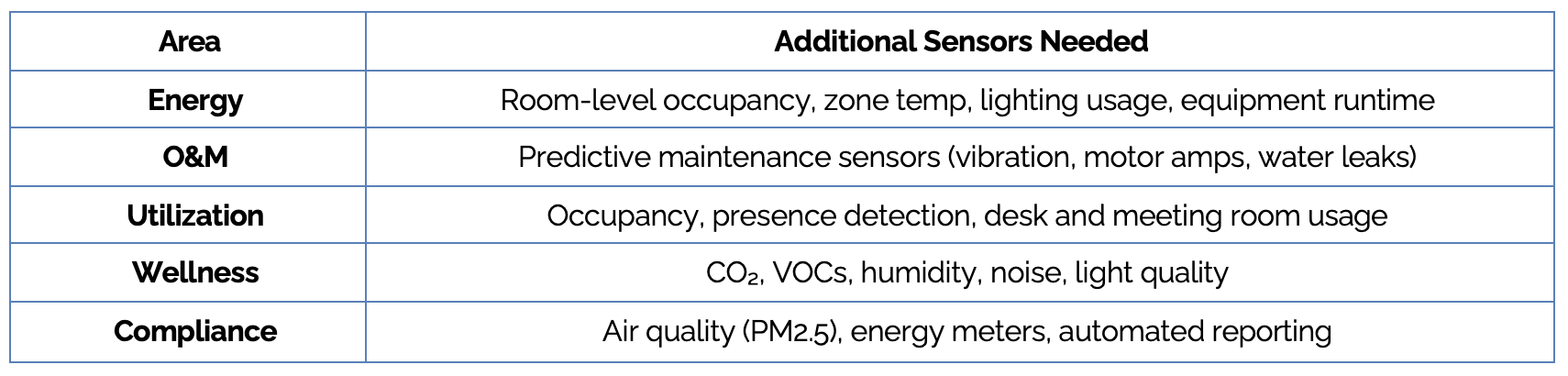

What’s Needed to Fully Address the 5 Goals

Why LoRaWAN Is Key to Filling These Gaps

Most Building Management Systems deployed today were designed around wired infrastructure—and that’s become a serious limitation. While they handle basic HVAC and lighting, these systems are often missing the dense, granular data needed to reduce costs, improve comfort, and meet today’s regulatory and ESG requirements.

That’s where LoRaWAN® sensors come in. They’re not here to replace the BMS—but to complete it.

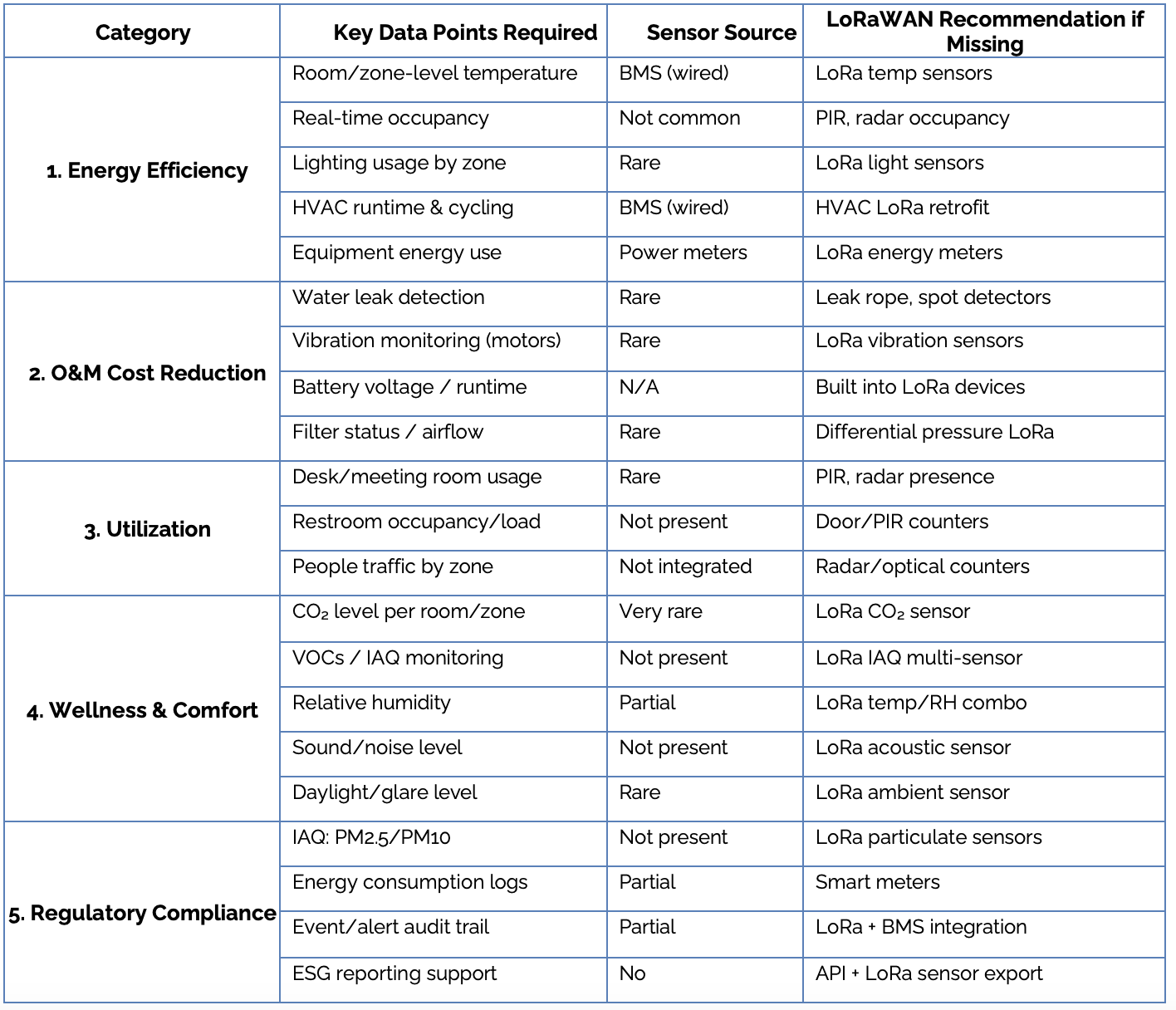

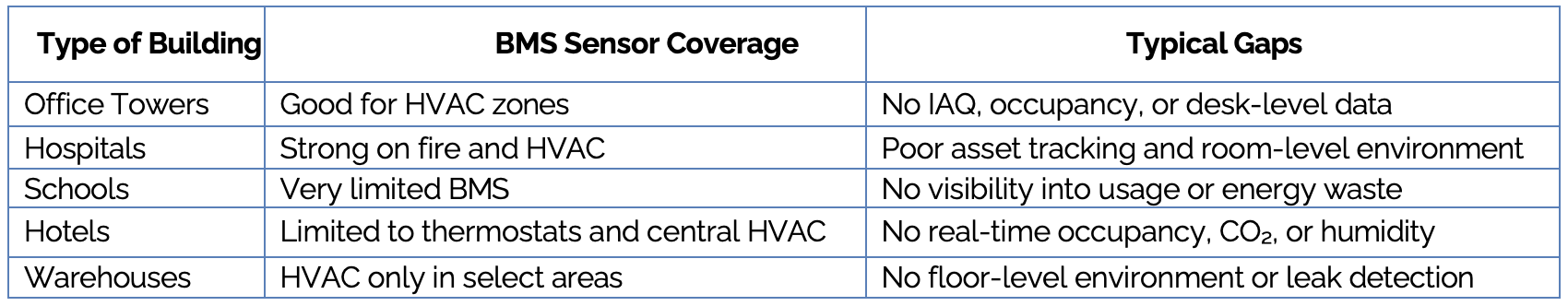

Current BMS Sensor Coverage and Potential with LoRaWAN Sensors and Devices

Typical RF range in dB for Wi-Fi, BLE, Zigbee, and Z-Wave and LoRaWAN

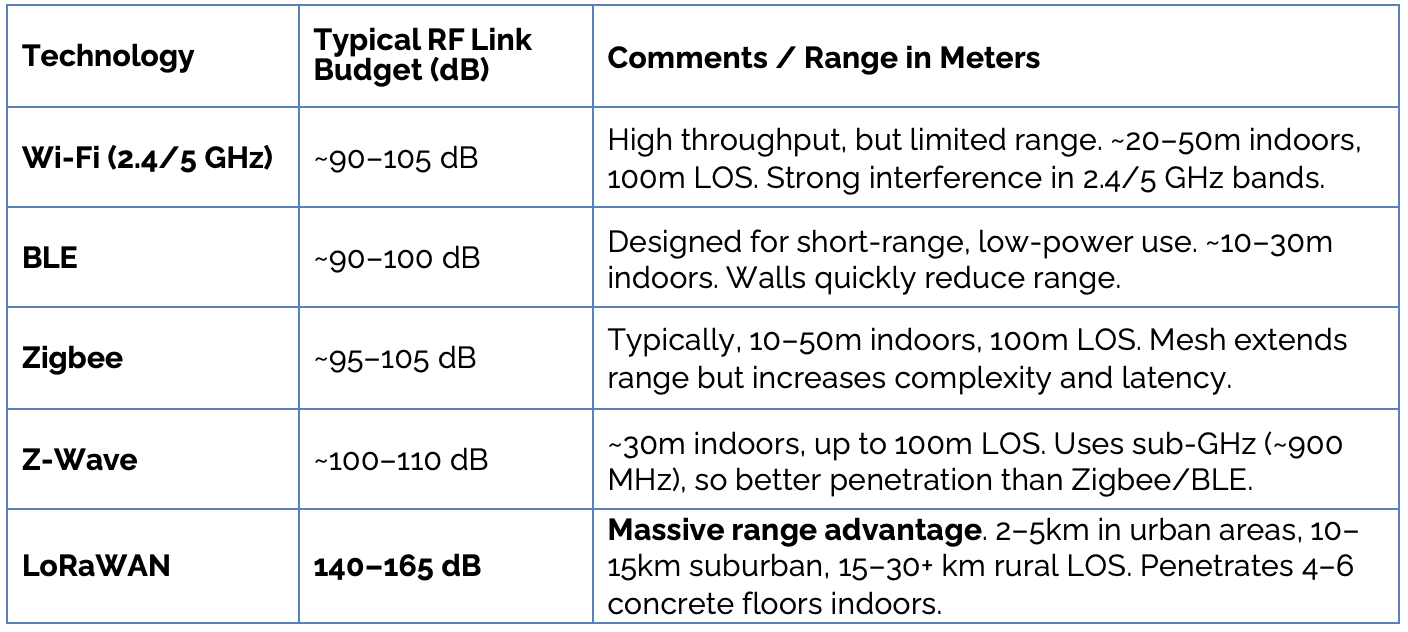

Here is a comparison of the typical RF link budget range (in dB) for Wi-Fi, BLE, Zigbee, Z-Wave, andLoRaWAN, which is the key metric determining how far and reliably a signal can travel and still be received:

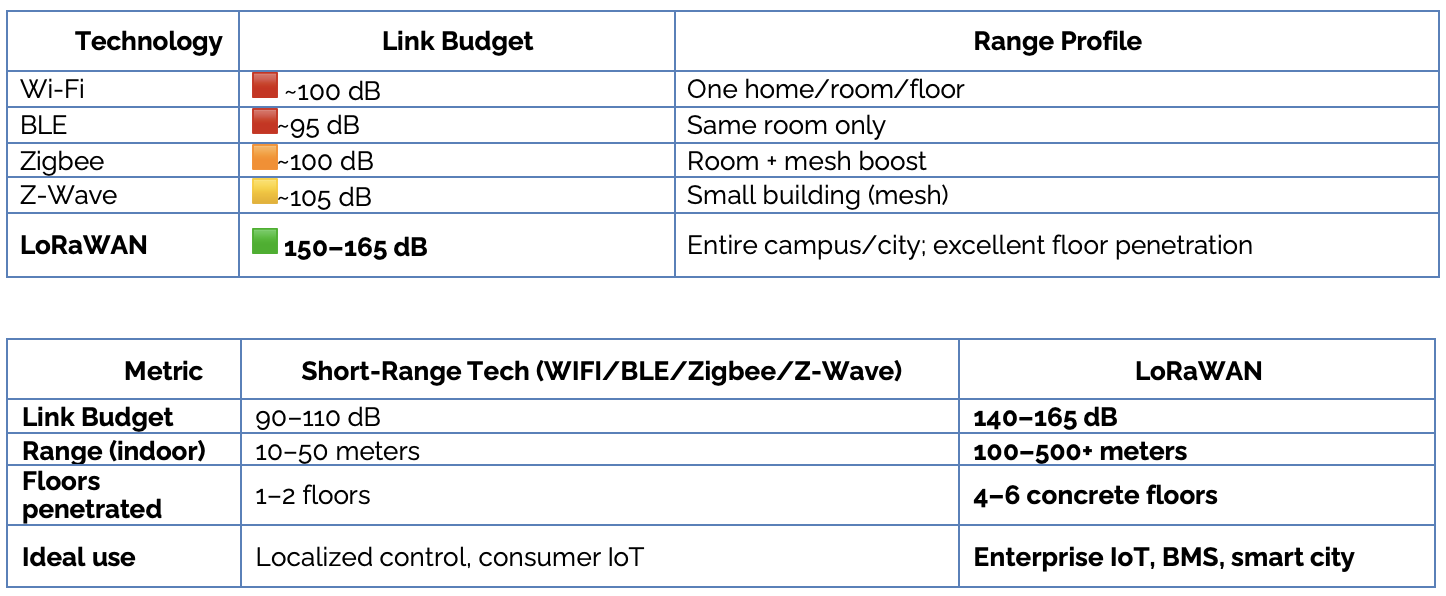

RF Link Budget (dB) Comparison Table

What Does “Link Budget” Mean?

Link Budget = Transmit Power + Receiver Sensitivity – Path Loss

• Higher link budget means longer range, better
• Each 6 dB gain ≈ doubling therange in free For example:
• BLE (~95 dB) might reach one
• LoRaWAN (~160 dB) can cover an entire campus or multiple buildings from one

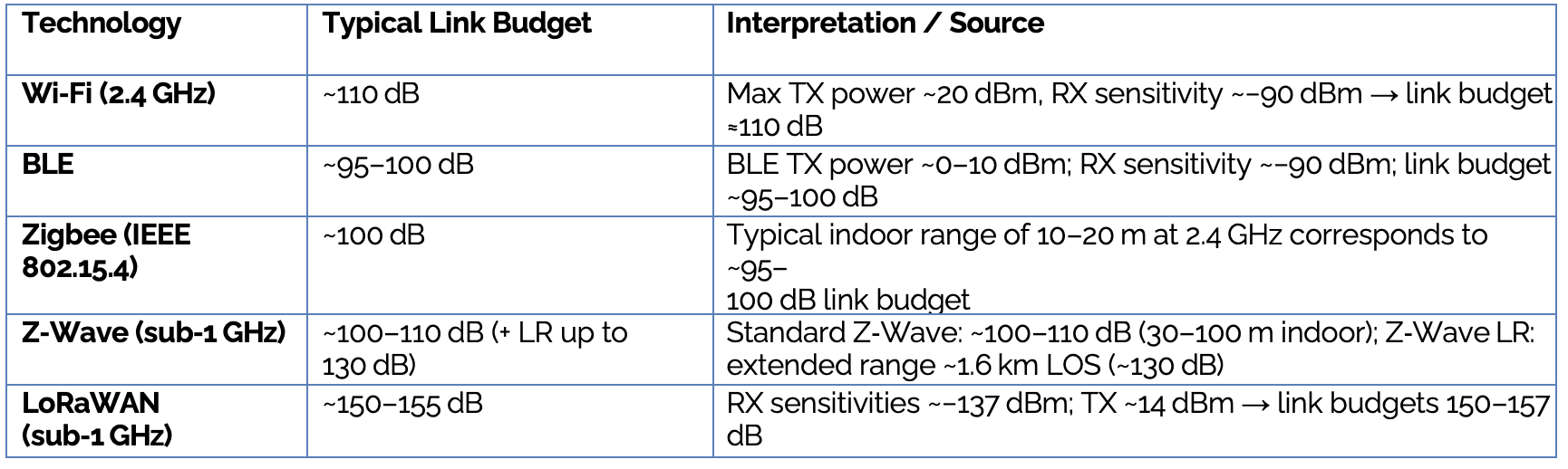

Here are the typical RF link budgets (in dB), a key measure of wireless range and penetration, commonly cited forconsumer and industrial IoT technologies:

RF Link Budget Comparison

Explanation

• Link Budget = TX Power + Antenna Gains – RX Sensitivity. It indicates how much path loss the signal can
• Roughly, each additional 6 dB in link budget doubles range in free
• Wi‑Fi, BLE, Zigbee operate in 4 GHz, offering limited indoor coverage (10–50 m).
• Z‑Wave and LoRaWAN, using sub‑1 GHz, achieve greater penetration and range, with LoRaWANoffering 4–6 concrete floors reach and kilometers outdoors due to its much higher link budget.

Summary

• Wi‑Fi: ~110 dB → 20–50 m indoors
• BLE: ~95–100 dB → 10–30 m
• Zigbee: ~95–100 dB → 10–20 m
• Z‑Wave: Standard ~100–110 dB (30–100 m indoor)
• LoRaWAN: 150–157 dB → hundreds of meters indoors, several kilometers outdoors

Remember how dB are derived and basic dB to linear ratios:

• To derive a power dB value from the linear value, take a log of the linear number and multiply it by 10,or 10*Log(100) = 10*2 = 20 dB. Its good to remember these basis values:
• 10 dB is 10; 20 dB is 100; 30 dB is 1000, …. 60 dB is 1,000,000, … 90 dB is 1,000,000,000 or numberof zeros in a linear number defines the Log number and dB value first digit.

This is important to indicate to people that LoRaWAN has 50-60 dB larger RF Link Budget, or 100,000 to 1,000,000 more ! This explains the reason why LoRaWAN is capable to receiver signals across 4-6 floor whileother technologies have issues on the same floor.

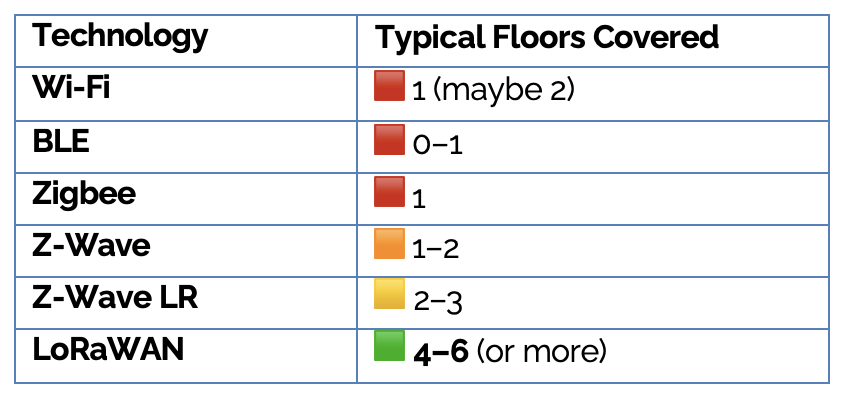

Here’s a practical estimate of how many concrete floors each wireless technology can typically penetrate in abuilding, based on its RF link budget, operating frequency, and signal attenuation per floor (typically 10–20dB per concrete floor depending on thickness, rebar, and moisture):

Wireless Technology vs. Floor Penetration

Device Power Consummation

Now let’s look at typical sensor or device power consumption in mA for Wi-Fi, BLE, Zigbee, and Z-Wave andLoRaWAN devices. The overview of typical current consumption (in mA or µA) for Wi‑Fi, BLE, Zigbee, Z-Wave, and LoRaWAN sensors/devices, based on representative internet and academic sources:

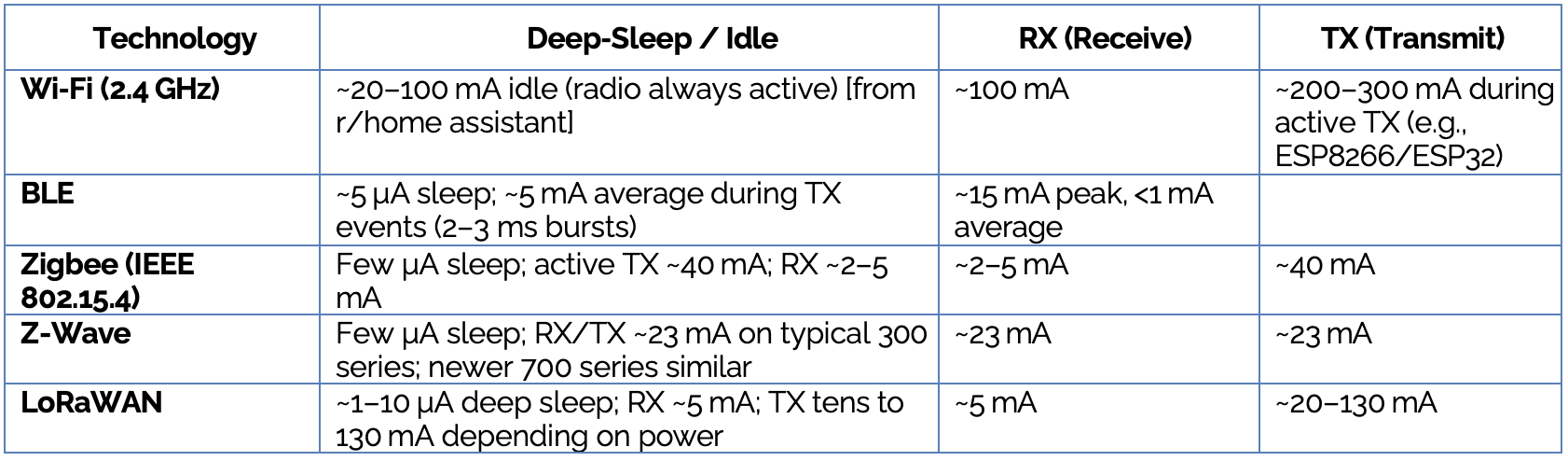

Wireless Technology Power Profiles

Highlights & Interpretation

• Wi‑Fi devices keep radios active, consuming tens to hundreds of mA, making them unsuitable forbattery-powered BMS
• BLE offers ultra‑low sleep currents (~5 µA) with modest TX spikes (~5 mA) in short
• Zigbee and Z-Wave are optimized for low power, with sleep currents in µA and TX currents ~40 mA(Zigbee) or ~23 mA (Z‑Wave).
• LoRaWAN shines in long‑term battery usage: deep‑sleep in single‑digits µA, with TX from 20 mA (low power)to 130 mA (max TX).

Result: BLE, Zigbee, Z‑Wave, and especially LoRaWAN enable multi-year battery Wi‑Fi does not.

Example Comparison

• BLE sensor: Wakes every 2 s, sends 3 ms burst at 5 mA → ~075 mAh/day.
• LoRaWAN sensor: Deep sleeps at 60 µA, TX range bursts at ~30 mA → ~25 mAh/day (~600 mAh yearly).
• Wi‑Fi device: Even in idle, consumes ~50 mA → ~1200 mAh/day (unsustainable for battery).

Summary

• Wi‑Fi: Always-on radio; high power, unsuitable for long-term battery
• BLE: Excellent for battery; µA-level sleep, ~5 mA
• Zigbee/Z‑Wave: Sleep in µA; TX around 23–40 mA.
• LoRaWAN: Ultra-efficient deep sleep (µA), TX up to 130 mA, supporting 5–10 year battery

Transmit Packets Duration for IoT technologies

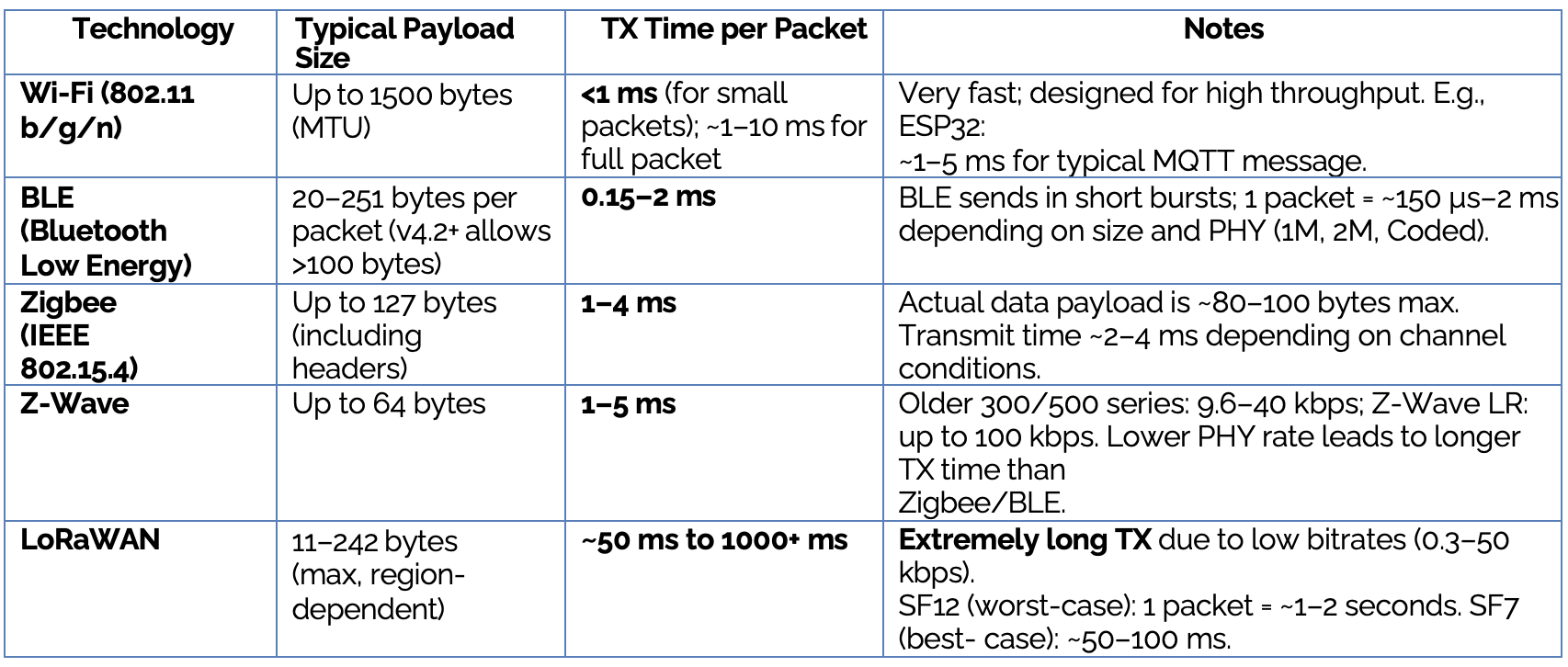

Here’s a breakdown of typical packet transmission durations for Wi-Fi, BLE, Zigbee, Z-Wave, and LoRaWAN- which is a key factor influencing power consumption, latency, and bandwidth:

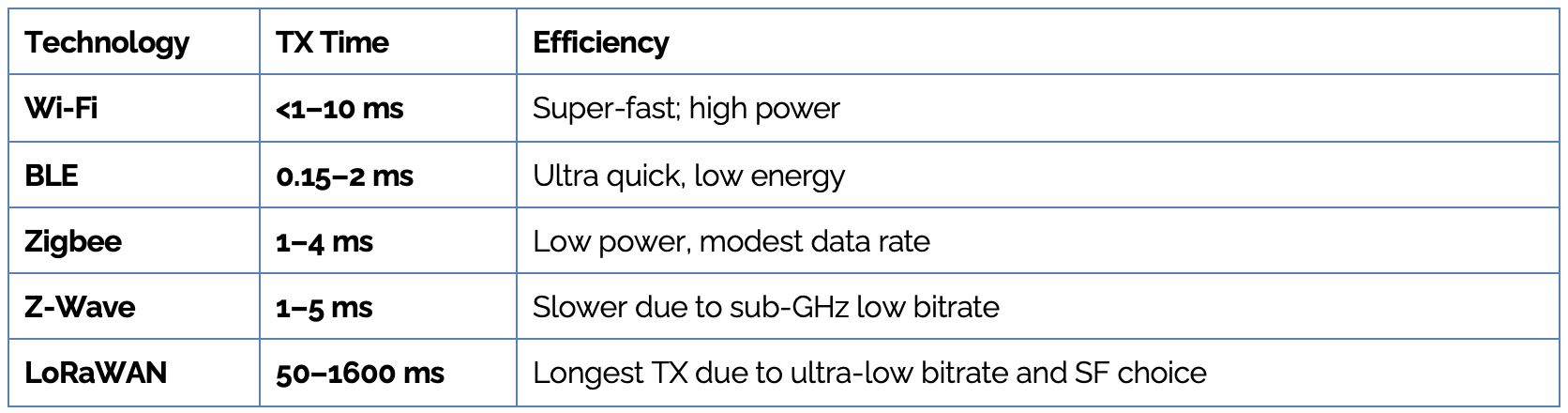

Transmission Time per Packet by Technology

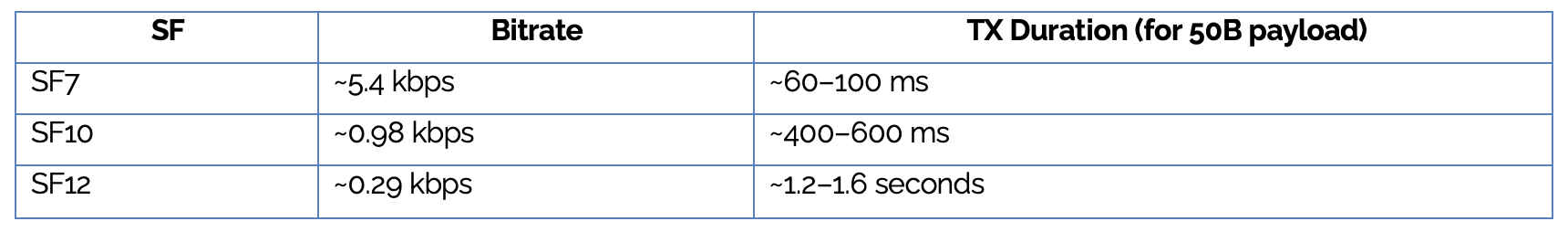

 LoRaWAN Spreading Factor (SF) Impact

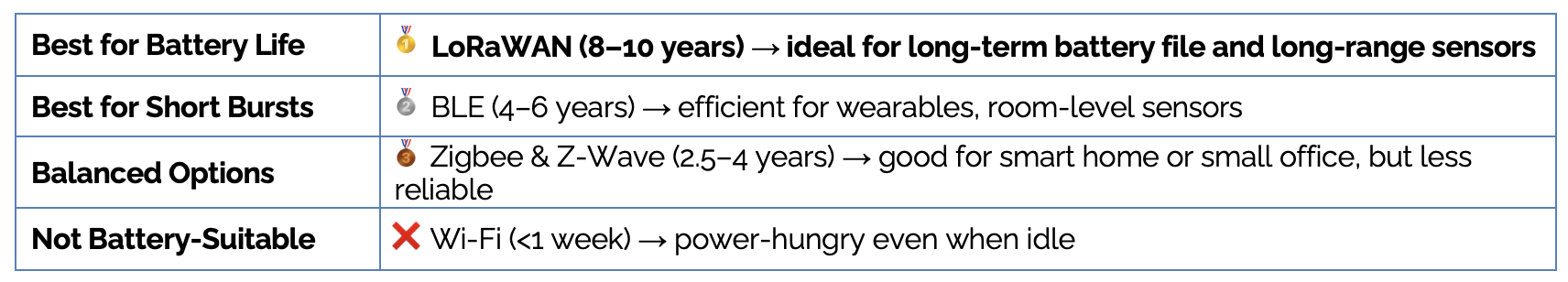

Summary of Transmit Time per Packet

Insight

• BLE and Zigbee excel at rapid, energy-efficient bursts for short-range
• LoRaWAN trades speed for range and low Long TX duration is acceptable since it transmits only a fewtimes per hour in most IoT use cases.
• Wi-Fi is optimized for speed and data but has high baseline power consumption and is not ideal for battery-powered IoT

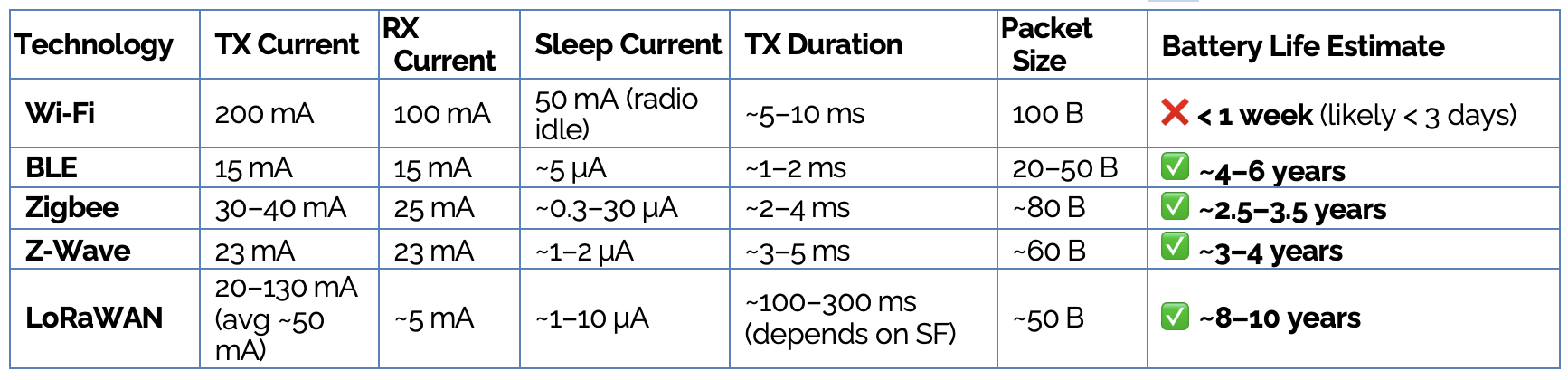

Now let’s look at five technologies for Tx and Rx rate, packet size, and frequency of Tx and list how long atypical 3V AA Lithium battery will last for a temperature sensor for all five technologies

Here’s a refined analysis based on internet data for transmit (TX) & receive (RX) currents, packet sizes,transmission frequency, and estimated battery life (using a ~2600 mAh 3V AA lithium battery) for a typical temperature sensor:

Here’s the updated Power & Usage Profiles table, assuming each technology transmits a temperature readingonce every 5 minutes (12 transmissions per hour, 288 per day) and sleeps the rest of the time.

We’ll also factor in the typical transmit time, current draw, and sleep consumption to estimate battery lifeusing a 3V 2600 mAh AA lithium battery:

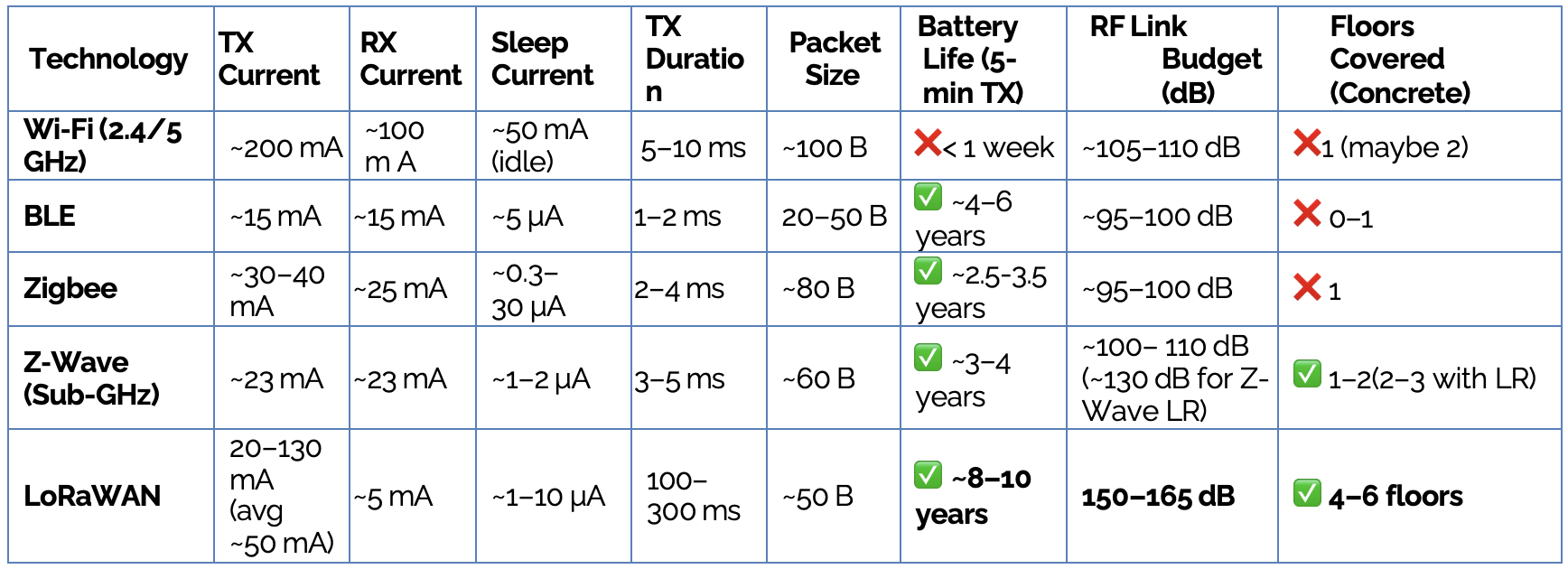

Power & Usage Profiles (5-Minute Packet Interval)

Notes:

• Wi‑Fi consumes power even when idle and reconnecting to a network every 5 minutes drains significant energy→ not suitable for battery-powered sensors.
• BLE is extremely efficient due to ultra-short transmission bursts and deep sleep
• Zigbee and Z‑Wave perform well but have longer radio-on times and modestly higher current than
• LoRaWAN has the longest TX duration, but due to infrequent transmission and ultra-low sleep current, it stillachieves industry-leading battery life.

Summary (at 5-min intervals)

Now add to the sale table the columns listing RF range in dB and how many floor eachtechnology will cover Here is the complete comparison table with RF Link Budget combining all the critical parameters:

• Power & Usage Profiles (for 5-minute packet intervals)
• Battery Life (3V 2600 mAh AA lithium)
• RF Link Budget (in dB)
• Typical Floor Penetration in a concrete building

Unified Wireless Technology Comparison Table

Key Takeaways

• LoRaWAN stands out in battery life, RF range, and floor penetration—perfect for enterprise and facility-wide
• BLE is extremely power-efficient but limited to same-room
• Zigbee/Z‑Wave are solid middle-ground solutions for smart homes and light commercial
• Wi-Fi is not viable for battery-powered sensors due to constant power draw and poor multi-floor

Conclusion: Completing the BMS Puzzle with LoRaWAN®

As buildings get smarter and sustainability becomes a necessity—not a nice-to-have—the limitations of traditional, wired BMS infrastructure are becoming harder to ignore. While BMS systems have served facility managers well for decades, they were never designed for the level of data granularity, flexibility, and scalability required today.

LoRaWAN® changes that.

By offering long-range, low-power wireless communication, LoRaWAN® enables the rapid deployment of thousands of sensors—without the high cost and disruption of pulling wires. It penetrates concrete floors, runs for years on a single battery, and integrates natively with existing BMS via standard protocols like BACnet and Modbus.

From energy efficiency and predictive maintenance to IAQ monitoring and regulatory compliance, LoRaWAN® fills the critical data gaps that wired systems can’t cover alone. It empowers facility managers to take a proactive, holistic approach to building operations—whether they’re managing a retrofit, a 50-story tower, or a national portfolio of properties.

The result? Faster installs. Lower costs. Greater insight. And buildings that are finally as smart and responsive as the people working inside them.

It’s not about replacing your BMS. It’s about unlocking its full potential.
