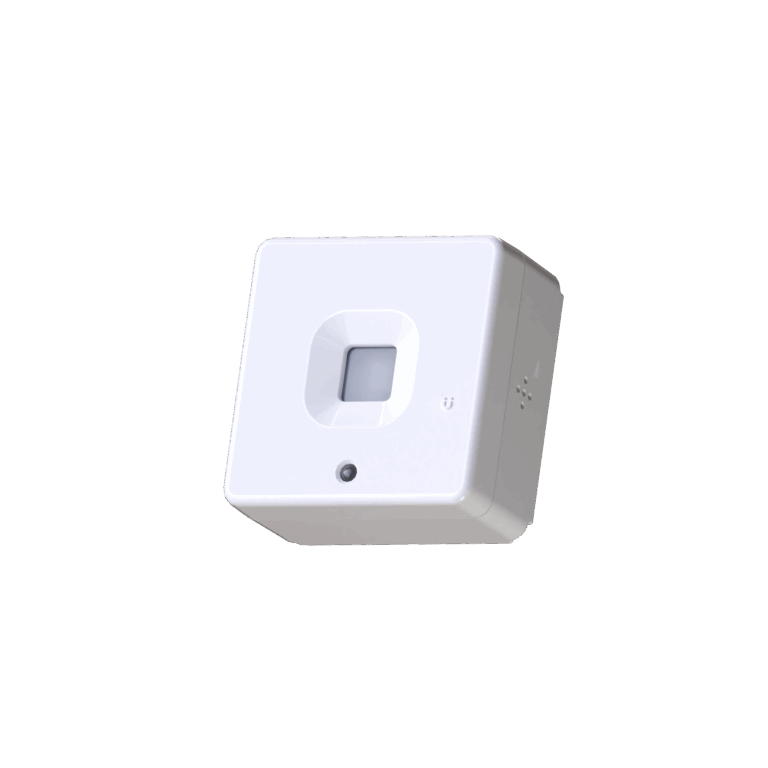

VIVID v2 LORAWAN® Smart Occupancy & Environment Sensor
An advanced motion and environmental sensor for precise occupancy detection and smart indoor monitoring
indoor / IP 65
4+ Years
Ambient Temperature & Relative Humidity
Ambient Light Detection
Magnetic Hall Effect Sensor
Motion Detection via Hall Effect
Presence Detection
Battery Level Indicator
Motion Detection via Hall Effect
Presence Detection
Battery Level Indicator
Ambient Temperature & Relative Humidity
Ambient Light Detection
Magnetic Hall Effect Sensor
Motion Detection via Hall Effect
Presence Detection
Battery Level Indicator
Works Best for
VIVID v2 optimizes lighting and HVAC usage by detecting motion and presence, reducing energy waste and operational costs
key verticals
Room Occupancy
Desk Occupancy
Point of Entry Security
HVAC Optimization
Smart Lighting Control
Room Occupancy Monitoring
Detects presence and motion to optimize space utilization, lighting automation, and energy efficiency in offices, hotels, and smart buildings

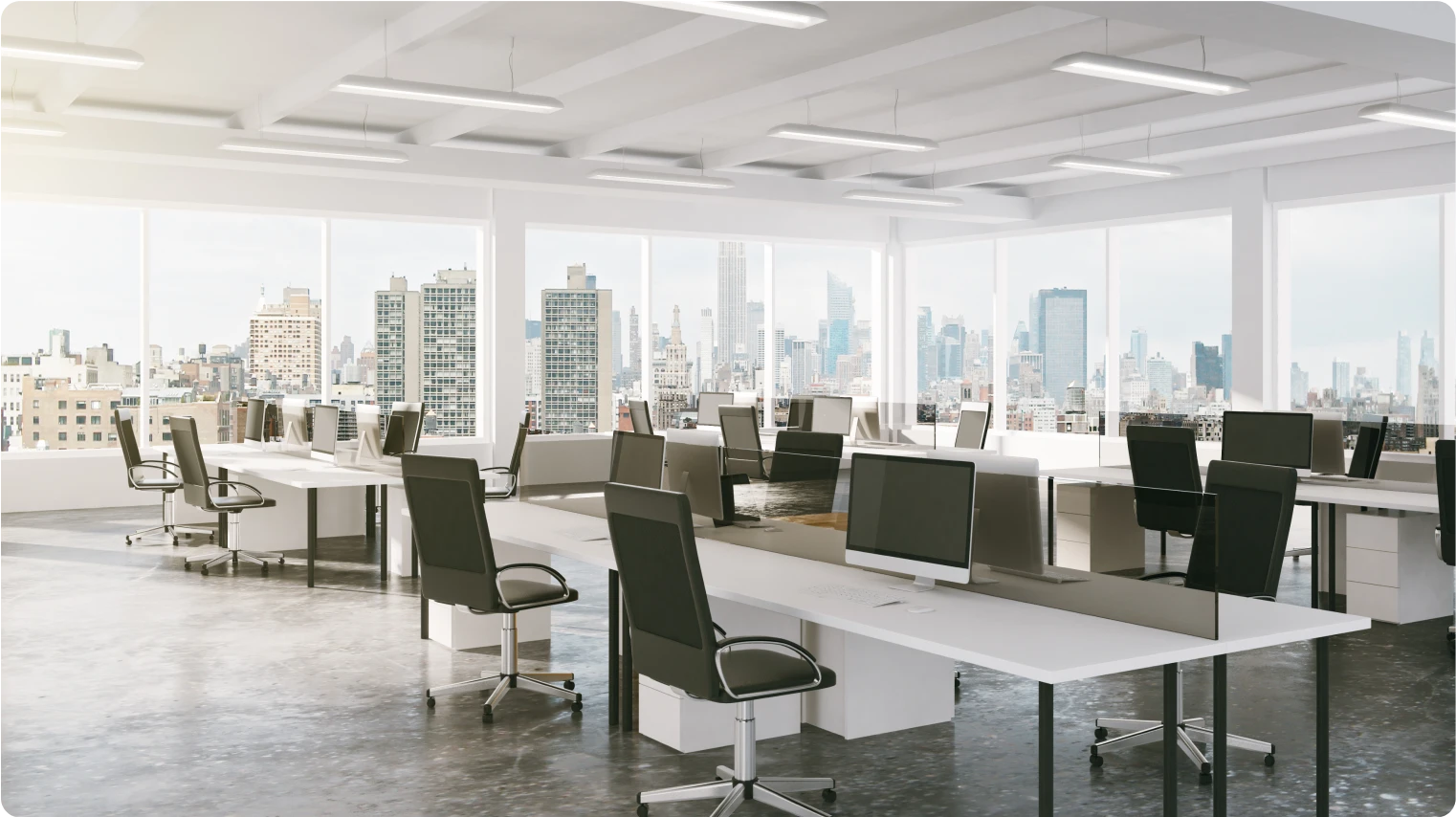

Smarter Desk Management
Get real-time insights into desk usage to support hybrid work and shared seating. By knowing which workstations are occupied or free, companies can reduce wasted space, improve employee satisfaction, and optimize space for future growth
Stronger Entry Awareness
Detect movement at key entry points to keep an eye on who is entering or leaving specific areas. This adds an extra layer of visibility and safety, especially in places where security and access control are important.
Climate Control That Makes Sense
Use occupancy and environmental data to fine-tune heating, cooling, and ventilation systems. This helps maintain comfortable indoor conditions while significantly lowering energy bills by avoiding unnecessary system operation.
Lighting That Matches the Moment
Lighting can be aligned with occupancy trends to avoid lighting empty spaces. This leads to noticeable energy savings and contributes to a more sustainable, user-friendly building environment.
VIVID v2 benefits
01
01
Rugged IP65 Design
Built to withstand dust and water exposure, making it ideal for both home and commercial environments where durability is key
Field-of-View Temperature Sensing
Measures object and human temperature within its detection range, providing enhanced environmental monitoring
Reliable Occupancy Detection
Integrated thermal infrared sensor enables accurate detection of room or desk presence to support workspace optimization and energy savings.
Long Battery Life
Delivers up to 4+ years of operation on a single coin cell, minimizing downtime and maintenance cycles.
Configurable Sensitivity
Adjustable detection thresholds for more precise occupancy tracking
Tool-Free Maintenance
Tool-Free Maintenance – Quick twist-off mount and battery access
Extended Occupancy Coverage
Wide, optimized angles that capture occupancy with precision
01
01
Compact Insight. Big Impact
VIVID v2 delivers accurate occupancy and environmental data in a compact, low-maintenance design - helping you reduce energy costs, optimize space, and improve indoor comfort.
01
01
MAIN FEATURES
- Motion/Presence Detection
- Event-Based reporting
- Field of View Temperature
- Light Detection (On / Off)
- Temperature Measurement
- Ambient MCU Temperature
- Humidity Measurement
- Movement Detection
- Optimized for close-range, desk-level occupancy detection
- User Friendly Twist-Off Mounting & Battery Access
- Remaining Battery life estimated as a percentage
Differentiations
-
Multi-Sensor Functionality in One Device
Detects motion, temperature, humidity, light, door activity, impact, and object heat. -
Accurate Occupancy & Desk Presence Detection
TMOS thermal infrared sensor detects stationary human presence for smarter space use. -
Smart Energy & HVAC Optimization
Adjusts lighting and climate based on occupancy to cut energy costs. -
Field-of-View Temperature Monitoring
Measures object and human temperature within its detection range. - Configurable Sensitivity
Adjustable detection thresholds for more precise occupancy tracking. -
Remote Management
Over-the-air (OTA) reconfiguration and diagnostics via ATLAS or LeapX. - Optimized Occupancy Coverage
Tailored fields of view for desks, walls, and ceilings.
MAIN FEATURES
- Motion/Presence Detection
- Event-Based reporting
- Field of View Temperature
- Light Detection (On / Off)
- Temperature Measurement
- Ambient MCU Temperature
- Humidity Measurement
- Movement Detection
- Optimized for close-range, desk-level occupancy detection
- User Friendly Twist-Off Mounting & Battery Access
- Remaining Battery life estimated as a percentage
Differentiations
-
Multi-Sensor Functionality in One Device
Detects motion, temperature, humidity, light, door activity, impact, and object heat. -
Accurate Occupancy & Desk Presence Detection
TMOS thermal infrared sensor detects stationary human presence for smarter space use. -
Smart Energy & HVAC Optimization
Adjusts lighting and climate based on occupancy to cut energy costs. -
Field-of-View Temperature Monitoring
Measures object and human temperature within its detection range. - Configurable Sensitivity
Adjustable detection thresholds for more precise occupancy tracking. -
Remote Management
Over-the-air (OTA) reconfiguration and diagnostics via ATLAS or LeapX. - Optimized Occupancy Coverage
Tailored fields of view for desks, walls, and ceilings.
TECHNICAL CHARACTERISTICS
Operational Temperature
0°C to 60°C
RF Power
13 dBm
Ingress Protection
IP65
LoRa Device Class
Class A and C
Battery
CR2477
Antenna
Internal
Weight
38 g
RF Sensitivity
up to -137dBm
Battery life
4+ Years
All Global ism bands
EU868, US915, AU915, AS923-1,-2,-3,-4, IN865, KR920
Dimension
43 x 43 x 22 mm
Empower Your Business Growth with a Trusted Supplier of LoRaWAN® Solutions
Why Choose
TEKTELIC Devices
TEKTELIC offers top-of-the-line LoRaWAN® gateways, sensors, and custom applications. These products, when combined, create a robust end-to-end solution that can be deployed efficiently and cost-effectively to tackle even the most complex IoT challenges.
01
01
Related products
cirkuit’s Comprehensive Solution for Property Management
DMI and TEKTELIC Collaboration for Commercial Buildings
Aware Buildings and TEKTELIC Partnerships
Cellcom and TEKTELIC Collaboration for Environmental Monitoring
How Property Managers Can Optimize Electricity, Heat & Water Bills For Individual Tenants
How to protect employees during the Covid-19 Pandemic
01
01
Frequently-asked questions
VIVID v2 is a LoRaWAN occupancy and environmental sensor that uses TMOS thermal infrared sensing to detect stationary human presence by measuring emitted body heat. It also measures temperature, relative humidity, and ambient light and includes accelerometer and magnetic Hall-effect sensing.
The main difference is how they detect people. VIVID v2 uses a TMOS thermal infrared sensor that detects stationary presence by measuring body heat, and it is optimized for close-range, desk-level occupancy. VIVID v3 uses a 64-pixel PIR array with multiple lens and masking options, and it is optimized for both extended-range room occupancy and desk-level detection, with wall, ceiling, and desk mounting. VIVID v2 also measures field-of-view temperature. Both models measure temperature, humidity, and light, include an accelerometer and Hall-effect sensor, and share an IP65 design, a CR2477 battery, and twist-lock mounting.
Yes. VIVID v2 is optimized for close-range, desk-level presence detection, making it well-suited to applications such as hot-desking, desk booking, and workspace utilization. For applications requiring extended-range room occupancy detection, VIVID v3 uses a 64-pixel PIR array and supports both room- and desk-level occupancy monitoring.
VIVID v2 has a 60° × 60° detection angle when mounted at desk height (0.75 m), which suits monitoring a single desk or workstation. Detection thresholds are adjustable to fine-tune sensitivity for each desk layout. For larger areas such as meeting rooms or open-plan spaces, VIVID v3 offers wider coverage of up to 86° × 74° from the ceiling.
VIVID v2 runs for about 4+ years on one CR2477 coin cell, depending on reporting settings and temperature, and reports remaining battery as a percentage. A twist-lock mount gives tool-free battery access.
No. VIVID v2 has no camera. It uses TMOS thermal infrared sensing to detect stationary human presence by measuring emitted body heat, without identifying individuals. This makes it suitable for privacy-sensitive occupancy monitoring.
By reporting which desks and rooms are actually occupied, VIVID v2 lets lighting and HVAC run on real demand rather than fixed schedules, cutting energy waste.
Yes. VIVID v2 is compatible with standard LoRaWAN gateways and network servers, allowing it to operate with TEKTELIC or compatible third-party LoRaWAN infrastructure.
Yes. VIVID v2 occupancy and environmental data can be integrated into a Building Management System through the LoRaWAN network infrastructure. Depending on the deployment architecture, data can be mapped to BACnet/IP or Modbus TCP for use by BMS platforms and building automation applications.
