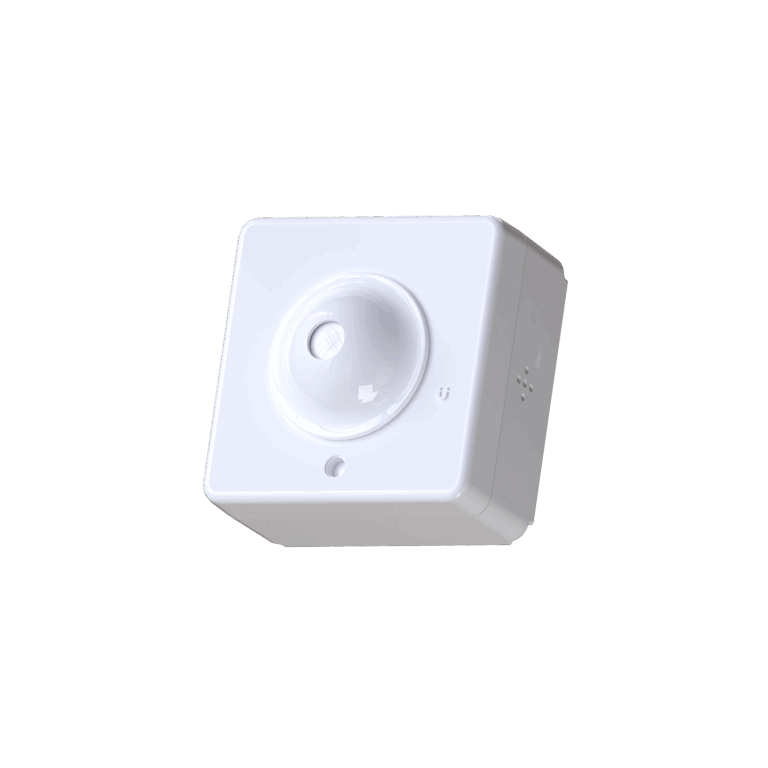

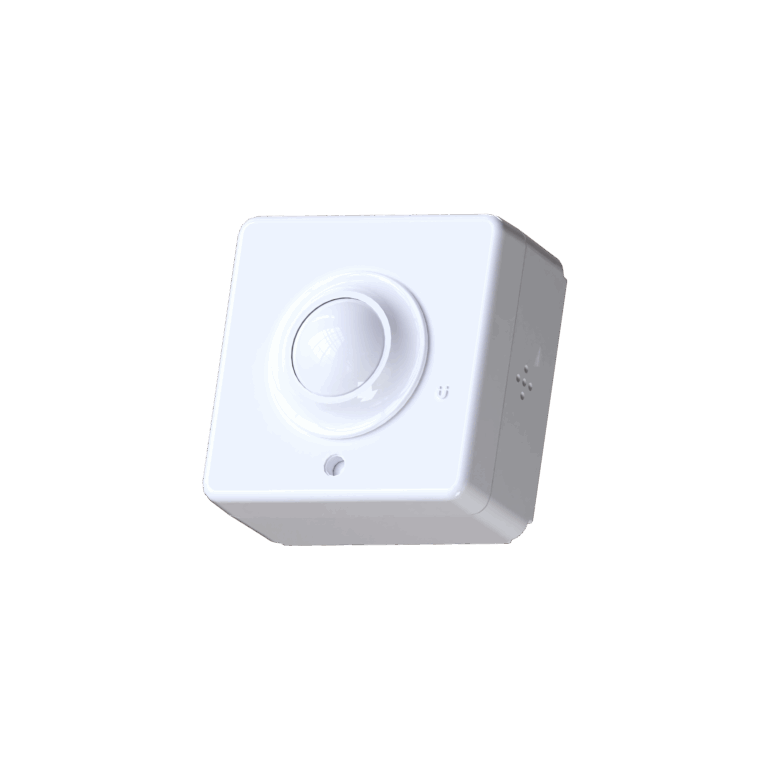

VIVID – LORAWAN® PIR SMART ROOM SENSOR

LoRaWAN® connected Home and Office Environment Monitoring

Battery Life

Up to 10 Years

Ingress Protection

IP30

Battery

CR2477

Tx Power

14 dBm

Weight

28g

The TEKTELIC VIVID [PIR Smart Room Sensor] integrates practical functionality into a very small form factor. The VIVID is an ideal solution for holistically monitoring the home and office environment. The device is capable of measuring and reporting temperature, humidity, light, movement, motion, shock, open / closed doors and windows. It also supports battery status updates for easy maintenance, has multiple PIR masking options. The sensor is optimized for long battery life and excellent wireless performance. It is fully configurable over-the-air by the user for custom applications, behaviours, thresholds, trigger events and reports, enabling it to support many different Smart Home and Office IoT applications.

TECHNICAL AND FUNCTIONAL SYSTEM SPECIFICATIONS

  • Movement Detect (Doors, Windows, Drawers)
  • G-Force Measurement (Settable Trigger)
  • Motion Detection
  • On / Off External Contact
  • On / Off Internal Magnetic Switch
  • Pulse Reading (Water, Gas, other metering)
  • Light Detection (On / Off)
  • Temperature Measurement
  • Humidity Measurement
  • User Configurable Parameters and Thresholds
  • Designed for Optimal Battery Life
  • Multiple PIR Masking Options
  • Long Battery Life
  • Wall, Ceiling or Table Mount Configurations
  • Simple Deployment
  • Sleek and Unobstrusive Design
Operational Temperature 0°C to 60°C (10°C to 40°C optimal)
Storage Temperature
-30°C to 60°C (0°C to 30°C optimal)
LoRa Device Class A
Antenna Internal
RF Sensitivity up to -137dBm
successful projects

cirkuit’s Comprehensive Solution for Property Management

Implementing LoRaWAN® Sensor Solution to Protect Buildings from Water Damage

Providing the Agricultural Sector with Smart and Cost-Efficient Connectivity Options

DMI and TEKTELIC Collaboration for Commercial Buildings

Aware Buildings and TEKTELIC Partnerships

TEKTELIC and DS Energy Collaboration for Energy Management

01

01

How do I determine the battery level of the sensor?

Since the sensor uses coin cell batteries, the battery voltage will steadily decrease over time. The sensor periodically reports the battery voltage by default, where anything higher than 3 V is at 100%, and anything below 2.8 V is typically between 0 and 10%.
